Quick Detail:
- Using for H beam flange straightening;
- With characteristics of easy operation, high straightening speed, good straightening quality.
- All the motions adjustment is marked with gauge, ensuring convenient and accurate usage.
- The main oil cylinder is sealed with qualified seal washer,with great seal characteristics and long life usage.
Description:

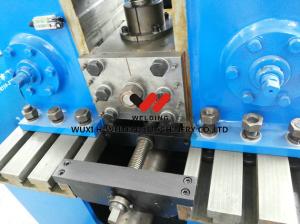

The equipment is mainly composed of frame,rockshaft,hydraulic oil cylinder and hydraulic system. There are 3 rockshafts in each group, and driven with 3 oil cylinders. Also these 3 rockshafts are controlled with high performance precise synchronous valve, guaranteeing identical tilting positioning. Overturning angle can be set or adjusted at will via limit-switch, and displayed by means of graduated scale.
Applications:
It is necessary equipment for the manufacturer of pressure vessel, power plant, shipping, chemical industry, steel structure and so on.
Specifications:
| Type | Machinanical Type | Hydraulic Type |
| Model | TJ-40 | YTJ-40 | YTJ-60 | YTJ-80 |
| Flange thickness (mm) | 6-40 | 6-40 | 6-60 | 6-80 |
| Flange width (mm) | 160-800 | 200-800 | 200-800 | 300-1000 |
| Flange Tensile Strength(MPa) | 420 | 600 | 600 | 600 |
| Web Height(mm) | Q235A | Q235A | Q345A | Q345A |
| Straightening speed(m/min) | ≥200 | ≥350 | ≥350 | ≥500 |
| Speed(m/min) | 13/17 | 6 | 6.3 | 6.3 |
| Motor power (KW) | 13.2 / 24.2 | 13.2 | 41.4 | 48.4 |
Competitive advantage:
1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of operation.
3. Steel and rubber roller or PU roller which can ensure a long time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accept special design and custom.
Company Profile:
Wuxi H-welding Machinery Co.,Ltd was founded in 2007. We are an export-oriented company and a subsidiary of Wuxi H-Power Group.
We specialize in the production of welding turning rolls, welding manipulators, welding positioners,CNC flames, plasma cutting machines, H-beam steel production lines and wind tower production lines. OEM and ODM projects are welcome as well.
Our products are widely marketed in the Middle East, South and North America, Africa, Southeast Asia, Australia and Europe.
One-Step Service Provider:We have our own processing factory and trading company, allowing us to provide one-stop services, from design, production and delivery to after-sales service. For more information, contact us today.
